AN/UPR-4 (PDRS)

Passive Detection & Reporting System (PDRS)

AN/UPR-4 (PDRS)

TTM's AN/UPR-4(V) Passive Detection & Reporting System (PDRS) is a passive, multi-channel Automatic Dependent Surveillance-Broadcast (ADS-B), Universal Access Transceiver (UAT) and Mode 5 Level 2 squitter reporting and cueing system. Designed with Department of Defense (DoD), Federal Aviation Administration (FAA) and Eurocontrol regulations in mind, PDRS acts as a receive-only system that provides situational awareness to civil and military aircraft, effectively eliminating radio frequency interrogation transmissions in the airspace. It is deployable in shipboard and airborne environments (fixed- and rotary-wing aircraft) and has been fielded on ground-based radar installations and mobile radar sites. The system's receiver, processor and tracker are based on the common software and firmware of our AN/UPX-44A IFF interrogator.

PDRS



Features

  • Compliant with DoD AIMS 03-1000B, ICAO 9871 and RTCA/DO-260B
  • Interfaces to both KIV-77 and KIV-78 crypto appliqués
  • Single-channel variant for low- to medium-density target environments
  • 6-channel variant for high-density target environments
  • Available in a 19 in. rack mount or tactical small form factor
  • Reports are fed directly to displays
  • Optional 978 MHz UAT
  • Embedded GPS with Selective Availability Anti-Spoofing Module (SAASM) capabilities

Related Resources

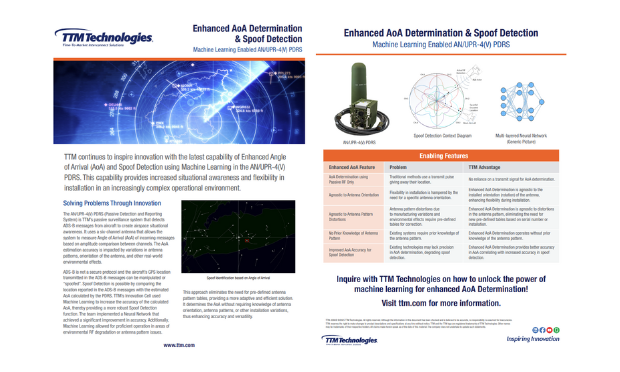

Brochure
